Name: 5810S Heavy Duty Slant Bed CNC Lathe Machine With 580mm Swing 1000mm Length
Brand: H.SON
Price: 1 USD

Price : negotiable

Place of Origin : China

Brand Name : H.SON

MOQ : 1

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union,MoneyGram,T/T

Contact Now

SPECIFICATION
project	5810S
Machine tool structure	bed frame	High rigidity integral15* stepped rail bed
	headstock	lay flat
	chip removal method	rear or side row
	chip conveyor	Rear chip removal tank integrated or side chip removal tank split
	protection method	Stainless steel full protection
Processing range	Maximum turning diameter of bed	580mm
	Maximum swivel diameter of the slide	250mm
	Maximum machining diameter	500mm
	Maximum processing length	1000mm
	Maximum bar through hole diameter	75mm
	Shaft machining diameter	250mm
	Disc processing diameter	500mm
Stroke and rapid traverse	X-axis effective travel	260mm
	Z-axis effective travel	1000mm
	X/Z axis rapid traverse rate	30m/min
	Recommended X,Z axis motors	18NM
Spindle parameters	Spindle nose model	A2-8	A2-11

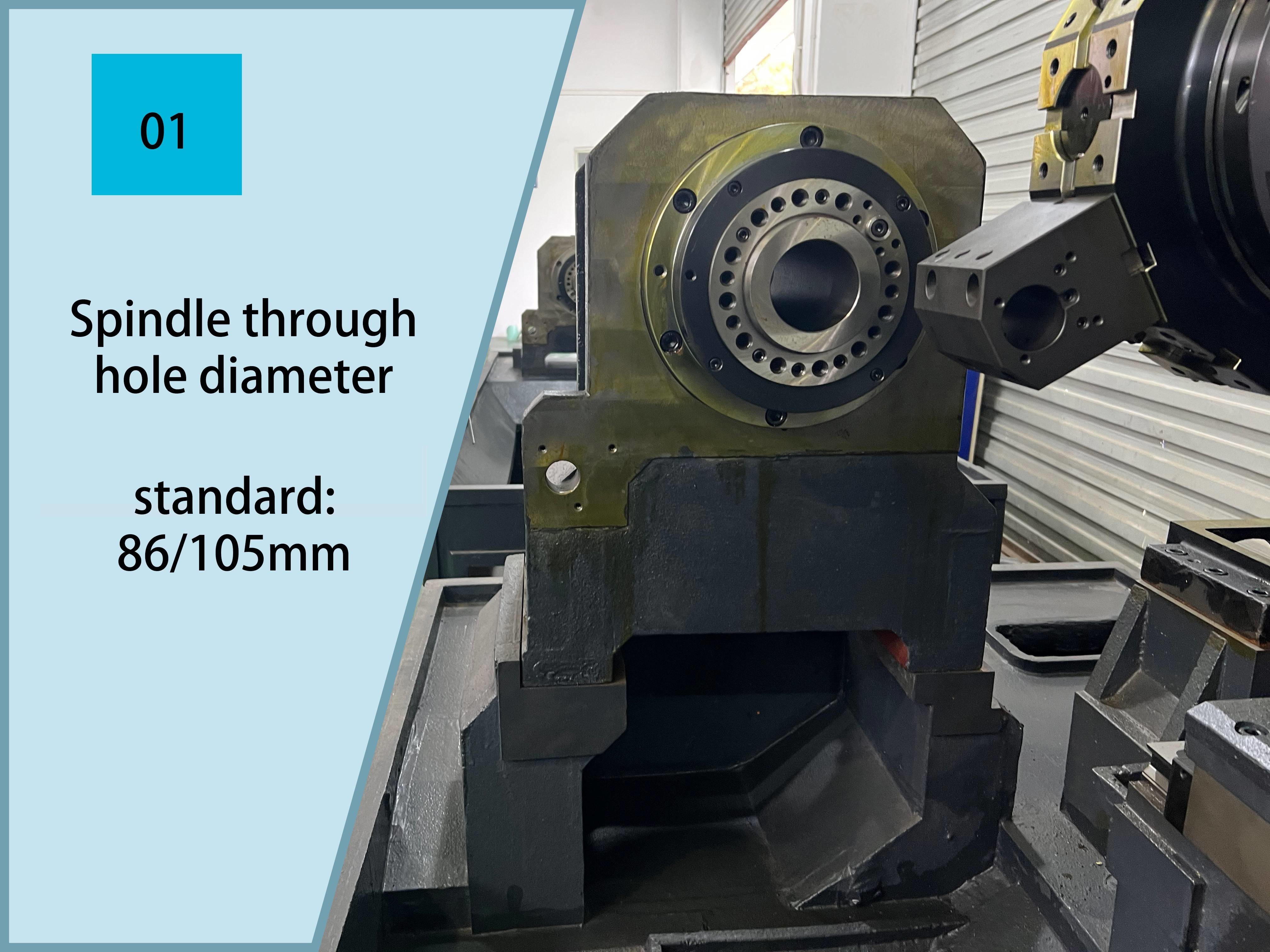

	Spindle through hole diameter	86mm	105mm
	Spindle maximum speed	3500r/min	2500r/min
	Spindle motoris recommended	15KW	18KW

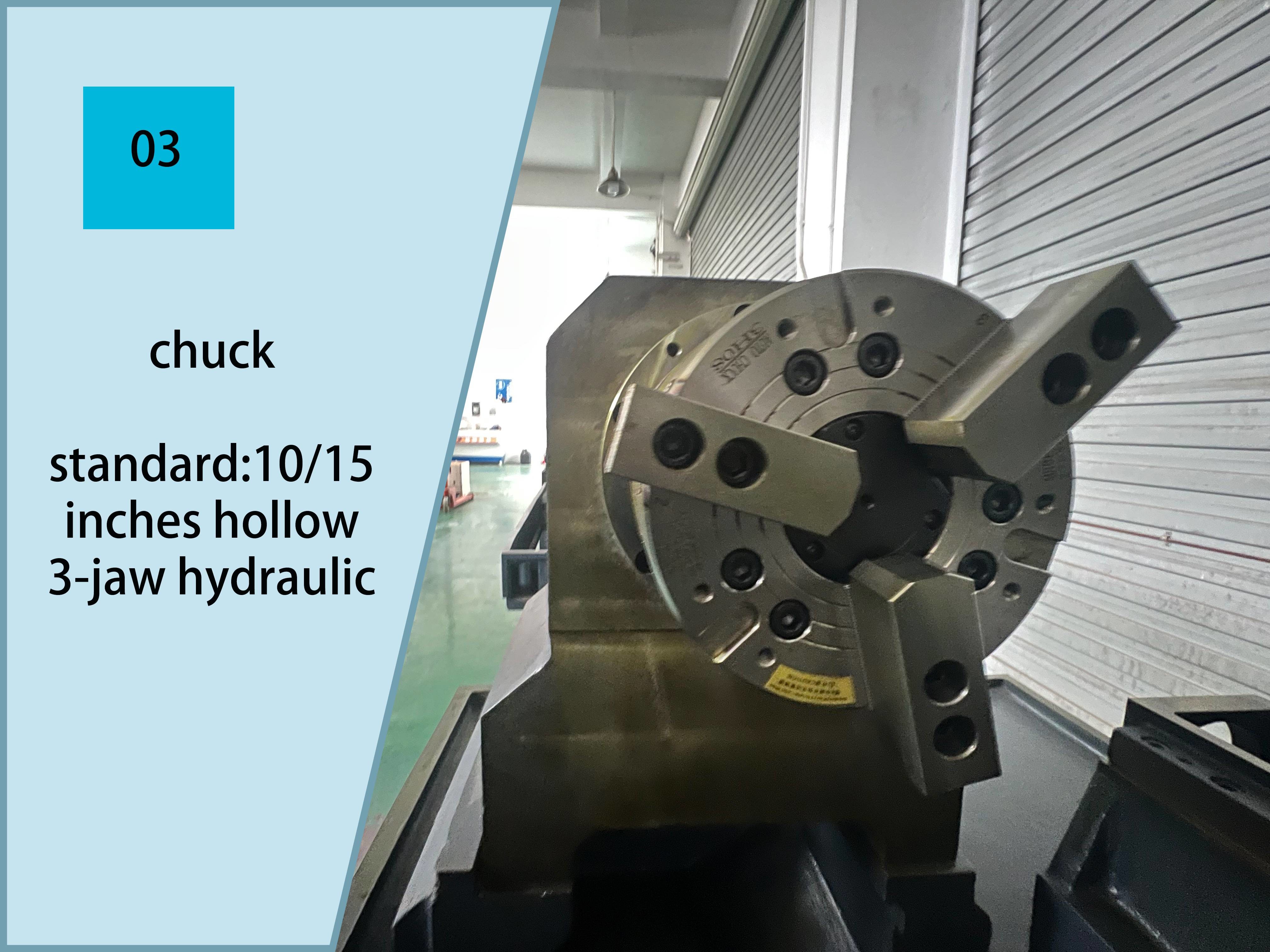

	Chuck and Rotary Cylinder Specifications	10寸(≈33cm)	15寸(50cm)
	Distance from spindle center to ground	1014mm
Precision	X.Zaxis repeatability	±0.003mm
	X,Zaxis positioning accuracy	±0.003mm
hydraulic tailstock	Tailstock Sleeve Specifications	MT-5
	Tailstock travel	750mm
	Tailstock pressurerange	4-25Mpa
	Tailstock movement	Programmable hydraulic movement
	tailstock structure	45mm line rail
Screw guide	X-axis rail specification	45mm roller guide
	Z-axis rall specifications	45mm roller guide
	X-axis screw specifications	4010
	Z-axis screw specifications	4010
	Screw bearing	3062

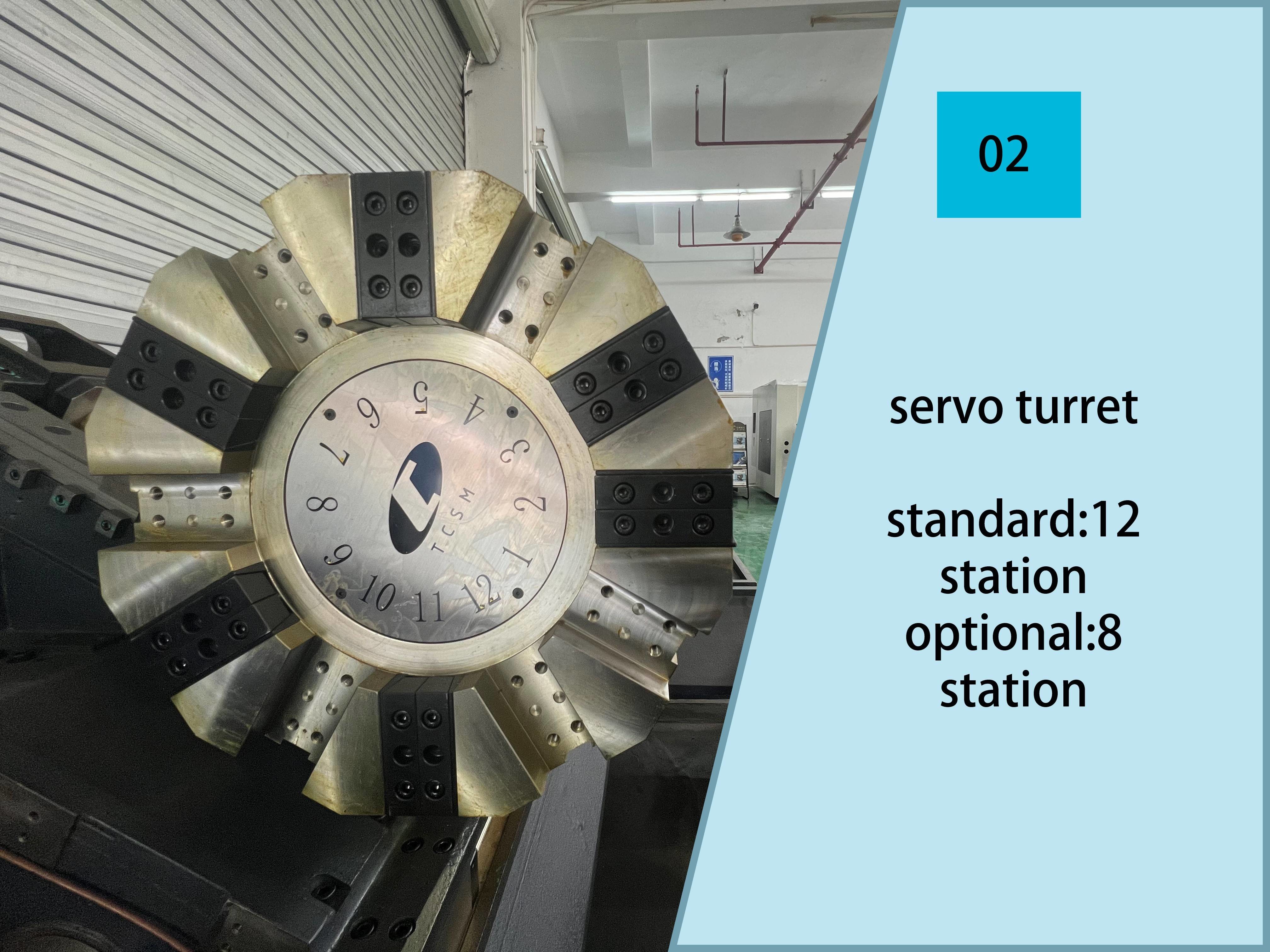

Servo Turret	number of stations	12T
	Cutter size	420mm
	Tool size	25mm
Dimensions	LxWxH	3350x1350x1450
	Light machine net weight	5T
